Mounting Kit for Bigsby B7 - Flying-V Guitars

* Note: Vibramate V7 is designed for the Bigsby "Original" B7 Vibrato ONLY and will not work with other variations such as the "Licensed" B70 Model or the Import B700 Model. Make sure you have the correct Bigsby Vibrato for proper installation of the Vibramate Kit!

Installs in Minutes!
For Flying-V guitars with Stop Tailpiece and Tune-A-Matic Bridge.

Vibramate

Vibramate

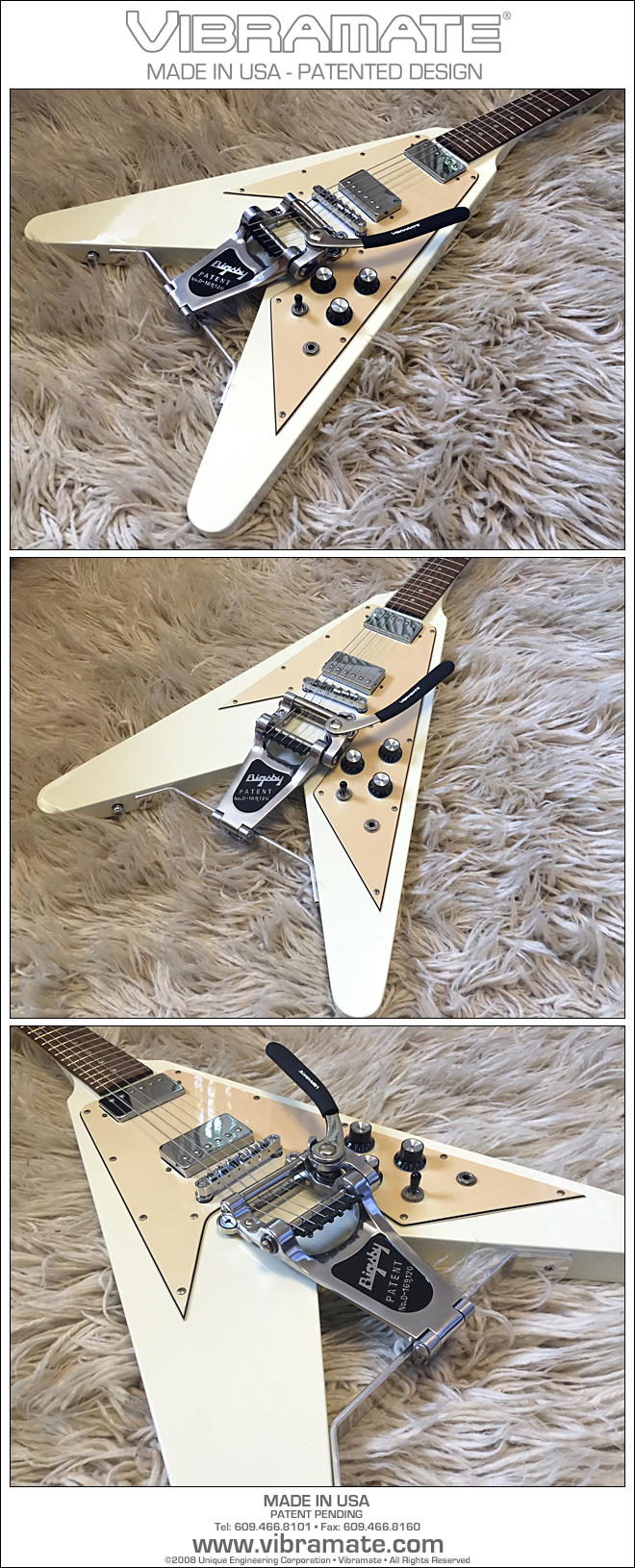

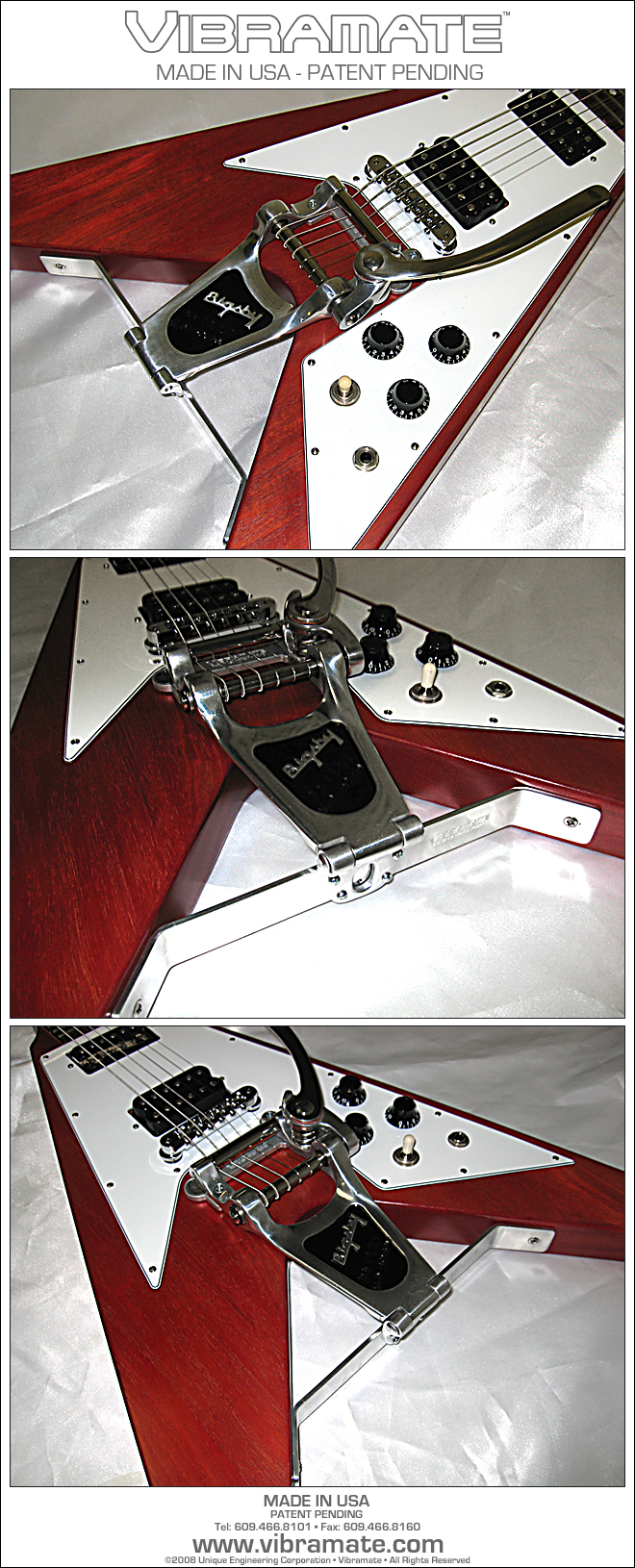

Vibramate The Vibramate V7-VW Model Mounting Kit is designed for a Bigsby B7 Original Vibrato and will fit most Standard Flying-V guitars with Stop Tailpiece and Tune-A-Matic Bridge.

The kit installs in minutes with the included hardware and eliminates the need for drilling holes in the face of your instrument. Note tat the included Wing Bracket does require 2 small holes inside the guitar body wings.

Vibramate V7-VW Kit includes the Vibramate V7 "Dogbone" mounting plate with felt-pads on the bottom for a soft touch to the top of your guitar.

Vibramate automatically positions the Bigsby Vibrato in the proper orientation and makes a very clean finished appearance with great performance.

The Vibramate V7-VW kit includes a Polished Aluminum Wing Bracket for mounting the tail of the Bigsby B7 that requires 2 small holes on the inside edge of the guitar body.

The Vibramate Quick Mount Kit includes both English and Metric threaded mounting hardware for either US or Import model guitars.

* Order Vibramate V7-VW Now!

Vibramate Vibramate

Vibramate

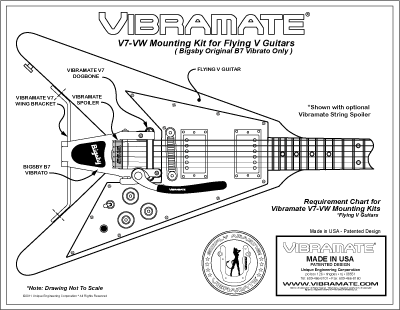

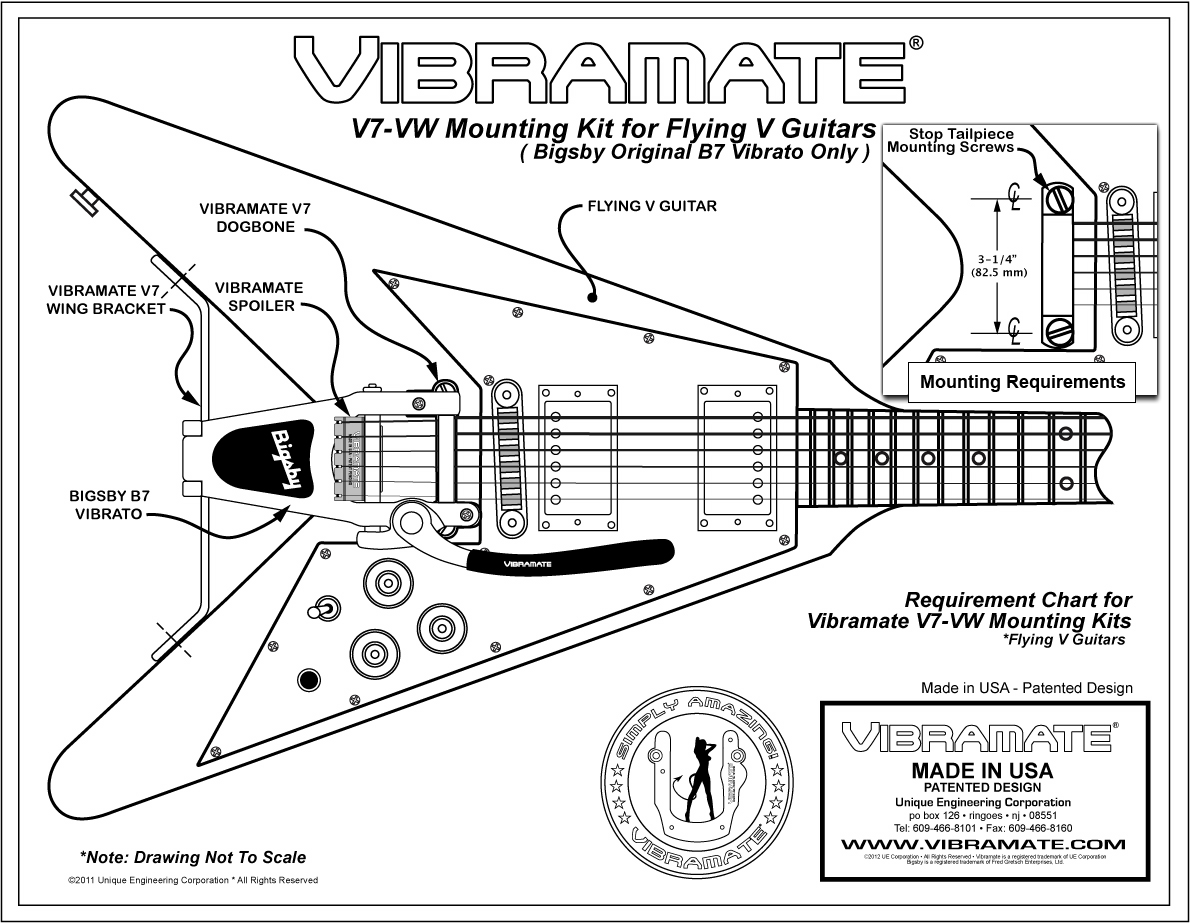

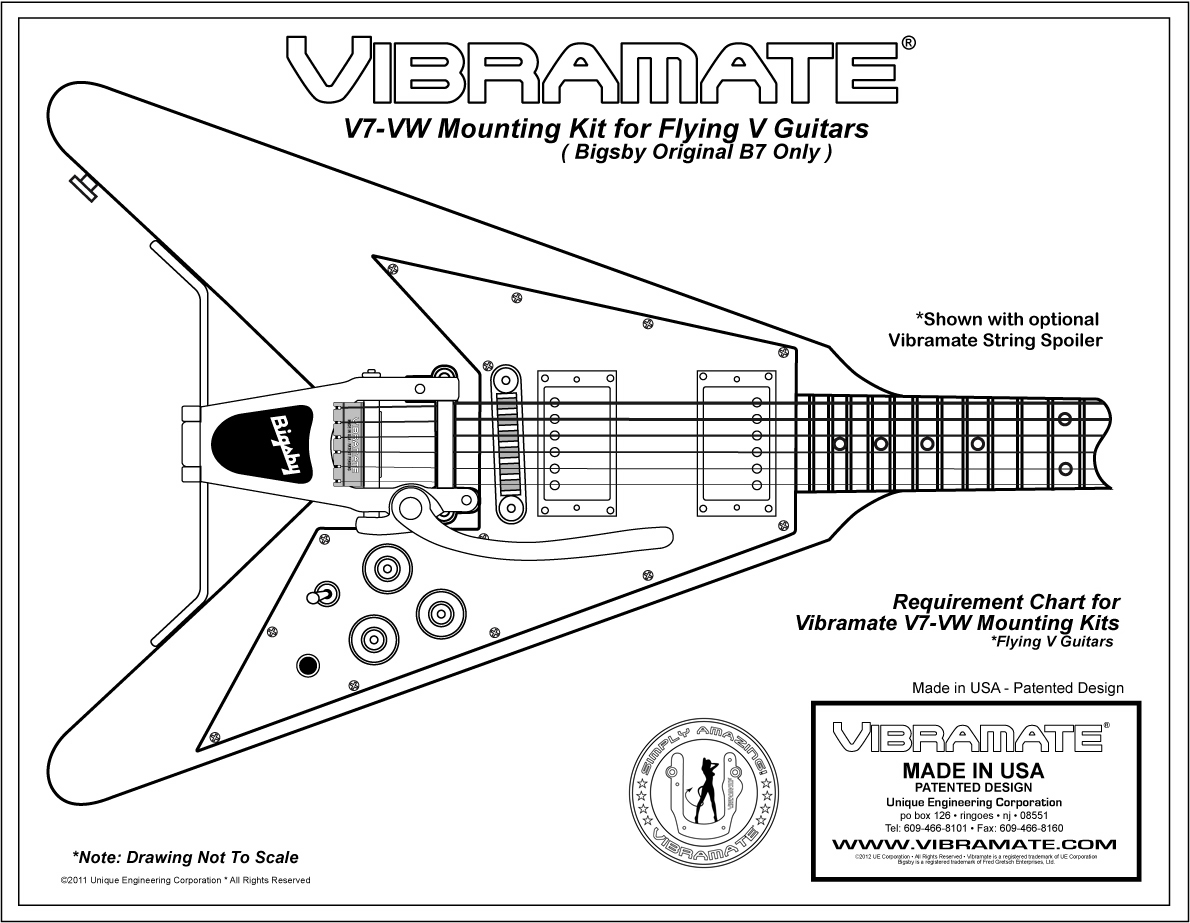

Installation Chart V7-VW

Please refer to our online diagram to check mounting dimension requirements for your specific guitar before ordering. Be sure to follow the mounting instructions to prevent damage to your instrument.

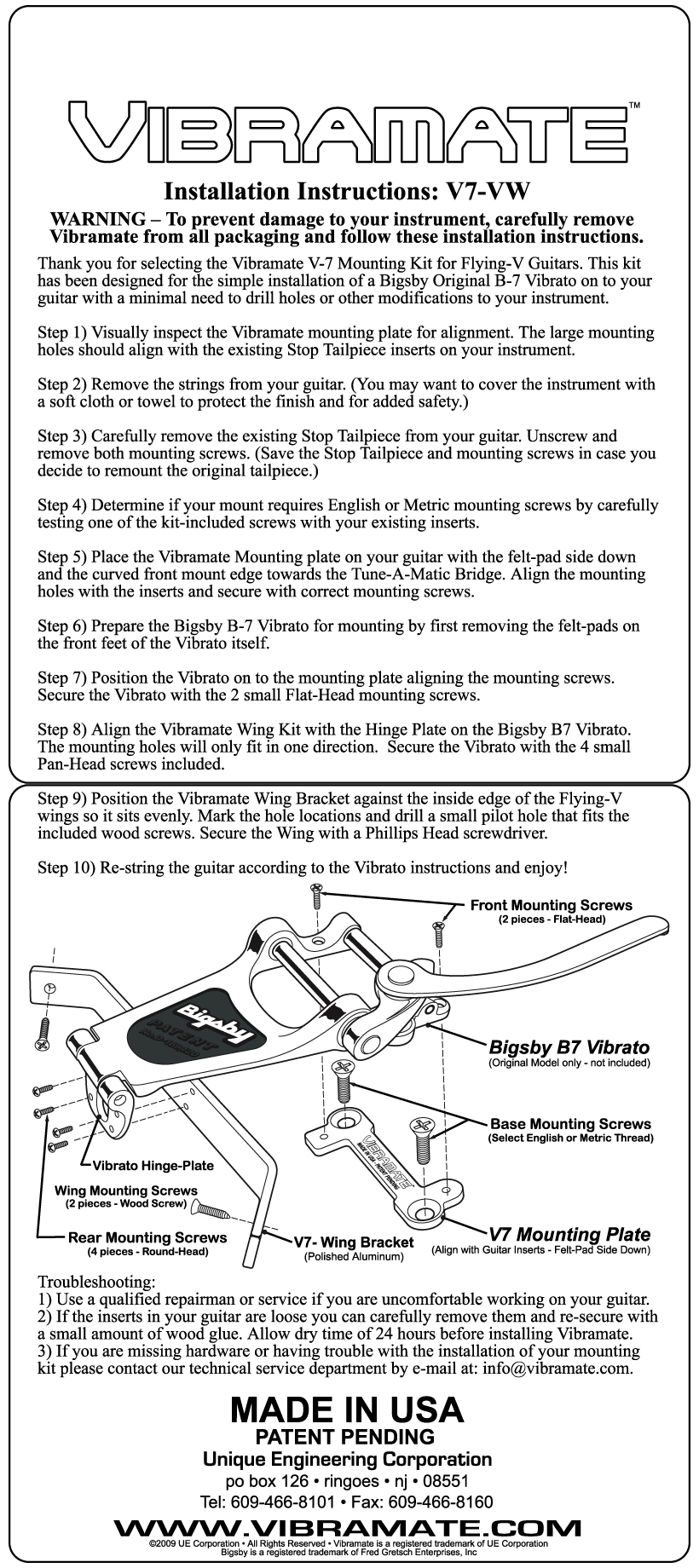

* Download Installation Instructions

* Order Vibramate V7-VW Now!
